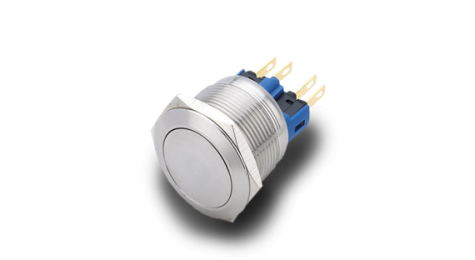

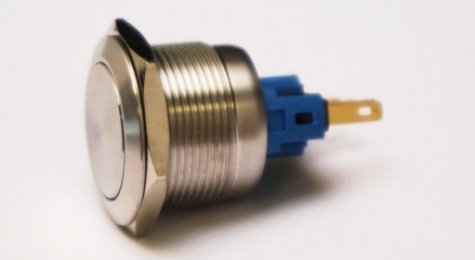

Ø22 flush non-illuminated
The R.series is a range of vandal-resistant pushbuttons that are designed to improve the durability and strength of control panels.
These pushbuttons are protected to IK10 and IP65, which makes them ideal for use in exposed public areas or aggressive industrial environments.
Different versions available:
- Ø22
- Materials: Stainless steel
- Flush actuator
- Switching: 1NO/1NC
- Pin terminal 2.8x0.5mm
TYPICAL APPLICATIONS
-
Access control, security systems
-
Exposed public areas: ticketing machines, vending machines, kiosks
-
Industrial: machinery and factory equipment..
ELECTRICAL CHARACTERISTICS
- Switching rate:
- 5A / 250VAC
- Electrical life (full load):
- 50 000 cycles
- Insulation resistance
- > 1000 MΩ
- Contact resistance:
- ≤ 50 mΩ
- Dielectric strength
- 2000 VAC
ENVIRONMENTAL CHARACTERISTICS
- Temperature:
- Operating -20°C to +55°C
- Vandal resistance:
-
Impact resistant to IK10
- Sealed to IP65
-
- RoHs
MECHANICAL CHARACTERISTICS
- Actuating force
- ≈ 5.5N
- Mechanical lifetime
- 1 million of cycles
SWITCHING SYSTEM
- Contact arrangement:
- 1 NO (Normally Open ) and 1 NC (Nomally closed)
- Function:
-
Momentary
-
- Terminals:
- Pin terminal 2.8mm x 0.5mm
STANDARD PART NUMBERS
Référence: R22FFSSPAG
Technical Sheet R.series non illuminated 22 mm flush
.png)

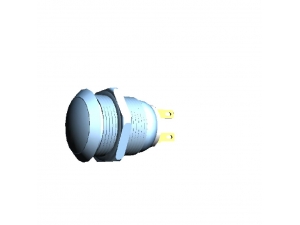

3D plane R.series non illuminated
